Canvas Coords#

On the face of it the coords method is slightly easier, but it often causes problems. In order to move an object it must first be selected, moved to a new position, then released. Alternatively the mouse can be first positioned then clicked whereupon the object will move to the mouse position. The first example is purely using the Scale widget, this shows the effect of moving and clicking:

from tkinter import Tk, Scale

root = Tk()

sc = Scale(root)
sc.grid()

root.mainloop()

There are some standard points to note, the user presses on the slider which has feedback to show it is pressed. Movement is limited by the trough, so a vertical trough only allows movement in the y-direction, a horizontal trough allows x-movement. Click outside the trough, nothing happens, but clicking inside the trough moves the slider. Dragging only occurs when the mouse is over the object and the mouse button is pressed. The slider looks as though it is moving, in reality it has been redrawn in a new position.

Drag and Drop#

We wish to emulate the Scale slider interaction in our canvas application. By adding binds to the mouse events, functions can be created to move a canvas object, this can be a drawn object or an image. There are quite a few Canvas functions we can use, in fact we are spoilt for choice. Let's see what can be considered as the bare minimum:

from tkinter import Tk, Canvas

def callback(event):
    draw(event.x, event.y)

def draw(x, y):
    can.coords(circle, x-20, y-20, x+20, y+20)

root = Tk()
can = Canvas(root)
can.bind('<Motion>', callback)
can.pack()

circle = can.create_oval(0, 0, 0, 0)
root.mainloop()

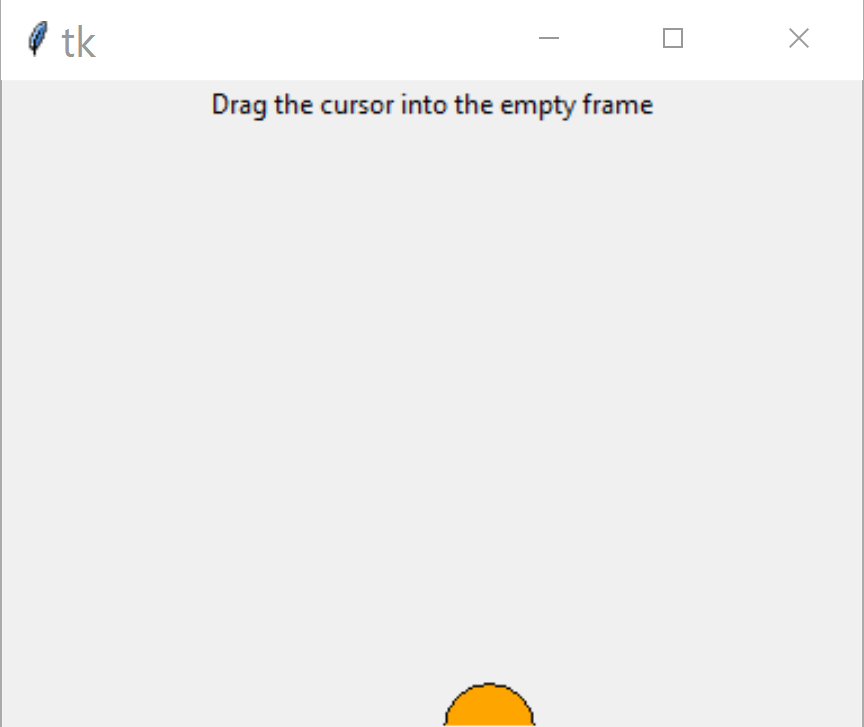

Here the widget is bound to the event <Motion> tied to the handler function callback which draws a circle wherever the mouse moves in the canvas. The handler function has an input event, which is necessary to find out the mouse position. Event has several attribute options - normally only x and y are required. The circle is drawn at the position found from event the actual drawing being governed by the Canvas function coords. Without coords the circle is drawn but not deleted when a new circle is drawn, this has the effect of creating a tail. When drawing a circle its size is determined by a bounding box, in the program this has been made when calling coords, which uses the cordinates of the object being moved, in our case a bounding box.

Normally the object is already drawn on the canvas, and we wish to move it to another position. Once the object is correctly positioned it needs to be dropped.

Modify the bind from <Motion> to <B1-Motion> for the left hand mouse button to start a handler that moves the given object. The handler changes the coordinates directly, but as the circle is not initially drawn by coords, set it up when being created, also there is no need to have separate callback and draw functions:

from tkinter import Tk, Canvas

def callback(event):
    can.coords(circle, event.x-20, event.y-20, event.x+20, event.y+20)

root = Tk()
can = Canvas(root)
can.bind('<B1-Motion>', callback)
can.pack()

circle = can.create_oval(0, 0, 40, 40, fill='orange')
root.mainloop()

Pretty neat eh, move the mouse to your circle then click and drag to a new position while keeping the left button pressed. When the mouse button is released the circle is dropped at that point. The cursor moves to the position given by the coordinates, normally use the centre, otherwise the top left hand corner of the bounding box is used.

Selecting an Object#

Say there is more than one object on the canvas then the object to be moved needs to be identified. Normally the user has no real idea what the object is called and does not want to access the program, all they want to do is move the cursor to the correct object and drag it. Use the Canvas function find_closest which identifies that object so that coords can move it:

from tkinter import Tk, Canvas

def callback(event):
    for search in can.find_closest(event.x, event.y):
        foundling = can.gettags(search)
        if foundling[0] == 'ring':
            can.coords(search, event.x-20, event.y-20, event.x+20, event.y+20)
        elif foundling[0] == 'square':
            can.coords(search, event.x-10, event.y-10, event.x+10, event.y+10)

root = Tk()
can = Canvas(root)
can.bind('<B1-Motion>', callback)
can.pack()

circle = can.create_oval(0, 0, 40, 40, fill='orange', tags='ring')
square = can.create_rectangle(100, 100, 120, 120, fill='pink', tags='square')

root.mainloop()

Canvas coords can no longer refer to the circle as there is a square to be moved as well, so the identifier (search) from find_closest is used instead.

What happens when there are different sized or shaped objects? The object needs to be identified and the correct parameters applied. We could work with the ID but it is not so obvious what is happening so add a tag to each object and use that to determine how coords is called. When gettags is called only the first entry is used, another tag current will have been added by tkinter to the found object.

The movement of the objects can be easily constrained to move horizontally or vertically, just by constraining the event.x or event.y within coords. So if we want the square to move horizontally make event.y 110, which correspods to the y dimension of the squares centre when initially drawn. In order to limit the extent of movement ensure that the event.x and event.y have maximum and minimum limits:

from tkinter import Tk, Canvas

def callback(event):
    #can.update()
    #can_width = can.winfo_reqwidth()
    #can_height = can.winfo_reqheight()

    for search in can.find_closest(event.x, event.y):
        foundling = can.gettags(search)
        if foundling[0] == 'ring':
            event.x = (c0[0] + c1[0])/2
            event.y = min(max(event.y,20), can_height-20 )
            can.coords(search, event.x-20, event.y-20, event.x+20, event.y+20)
        elif foundling[0] == 'square':
            event.y = (s0[1] + s1[1])/2
            event.x = min(max(event.x,10), can_width-10 )
            can.coords(search, event.x-10, event.y-10, event.x+10, event.y+10)

root = Tk()
can_width = 380
can_height = 270
can = Canvas(root, width=can_width, height=can_height)
can.bind('<B1-Motion>', callback)
can.pack()

c0 = 0, 0
c1 = 40, 40
s0 = 100, 100
s1 = 120, 120
circle = can.create_oval(c0, c1, fill='orange', tags='ring')
square = can.create_rectangle(s0, s1, fill='pink', tags='square')

root.mainloop()

What happens when the canvas is resized by the user? The constraints still apply but the relative positions have changed. The original canvas dimension still applies to the limits, so it is better to set the canvas size at the start then apply this to the limits, rather than follow a change in sizes.

Tie into a Sketch#

rectangle with 2 handles in tkinter frame

We are now in a position to apply this to a change in sizes of a sketch. As an example create a rectangle and give it two handles at two of the corners. If the handles are left as squares or circles they are easy to construct, but the user may be puzzled if these are constrained to work in a single direction. Make a double headed arrow and use this in coords. As there will be separate horizontal and vertical parts we require two separate double- headed arrows, each with a distinct tag - similar to the constrained example. Apart from the polygon used to draw the double-headed arrows, note that we are using an activefill which fills the arrow with a different colour to the fill, This gives a positive feedback to the user that the arrow is ready to be moved.

Draw a simple rectangle, the top left corner will have the horizontal handle the bottom left the vertical handle. This means that the top right corner never changes position. Set up the constants then the bind function callback, this is where we have most of our programming. When the horizontal arrow is moved delete all the construction tagged with square and vertical arrow, then redraw using the new x value. In this example everything apart from the horizontal arrow is deleted.

The vertical arrow has much the same effect except that the redrawing uses the the y value. The bottom right corner has initial x, y values set to our initial values, but change whenever a handle is repositioned.

Note

Click on arrow to show the code, which can be hidden by clicking again on the arrow.

from tkinter import Tk, Canvas

can_width = 380
can_height = 270
s0 = 50, 50
s1 = 350, 250
rectx = s0[0]
recty = s1[1]

def callback(event):
    can.update()
    can_height = can.winfo_reqheight()

    for search in can.find_closest(event.x, event.y):
        global recty, rectx
        foundling = can.gettags(search)
        if foundling[0] == 'harrow':
            X = event.x
            #Y = event.y
            Y = s0[1]
            rectx = X
            X = max(X,10)
            can.coords(search, X-10,Y,X-5,Y-5,X-6,Y-2,X+6,Y-2,
                X+5,Y-5,X+10,Y,X+5,Y+5,X+6,Y+2,X-6,Y+2,X-5,Y+5)
            can.delete('square', 'varrow')
            can.create_rectangle((X,s0[1]), (s1[0], recty), width=2, tags='square')

            Y = recty
            can.create_polygon([X,Y-10,X-5,Y-5,X-2,Y-5,X-2,Y+5,
                X-5,Y+5,X,Y+10,X+5,Y+5,X+2,Y+5,X+2,Y-5,X+5,Y-5],
                fill='lawn green',outline='lawn green', width=2,
                tags=('varrow'), activefill='red')

        elif foundling[0] == 'varrow':
            #global recty, rectx
            #X = event.x
            Y = event.y
            X = rectx
            recty = Y
            Y = min(Y,can_height-10)
            can.coords(search, X,Y-10,X-5,Y-5,X-2,Y-5,X-2,Y+5,
                X-5,Y+5,X,Y+10,X+5,Y+5,X+2,Y+5,X+2,Y-5,X+5,Y-5)
            can.delete('square')
            can.create_rectangle((X, s0[1]), (s1[0], Y), width=2, tags='square')

root = Tk()

can = Canvas(root, width=can_width, height=can_height)
can.bind('<B1-Motion>', callback)
#can.bind('<B1-Button>', callback)

can.pack()


square = can.create_rectangle(s0, s1, width=2, tags='square')

x = rectx
y = s0[1]
can.create_polygon([x-10,y,x-5,y-5,x-6,y-2,x+6,y-2,
            x+5,y-5,x+10,y,x+5,y+5,x+6,y+2,x-6,y+2,x-5,y+5],
            fill='',outline='lawn green',width=2, tags=('harrow'),
            activefill='red')

x = rectx
y = recty
can.create_polygon([x,y-10,x-5,y-5,x-2,y-5,x-2,y+5,
            x-5,y+5,x,y+10,x+5,y+5,x+2,y+5,x+2,y-5,x+5,y-5],
            fill='lawn green',outline='lawn green', width=2,
            tags=('varrow'), activefill='red')

root.mainloop()

Split Coords Bind#

At present coords works from a single bind, which means that it has to find the correct object and keep using it while the mouse is dragging the selected object. If we separate the functions of searching and dragging we need to easily access the variables so add a dataclass and we can take out the initialisation variables.

Bind the mouse key being pressed down:

can.bind('<ButtonPress-1>', click)

Now create the bind function click. When the mouse button is clicked find the identity of the nearest object, convert this to a tag which is readily identifiable. Since the identity is found we can eliminate the for construct. The bind function is much as before without the find part. Change the identity to that given by the click function. Run the new script and note whether the pick up and dragging of the object is any better. I had the feeling it was improved.

from tkinter import Tk, Canvas
from dataclasses import dataclass

@dataclass
class pos:
    __slots__ = ['name', 'xval', 'yval']
    name: str
    xval: int
    yval: int

@dataclass
class dc:
    found: str
    can_width: int = 380
    can_height: int = 270

s0 = pos(name='upper left corner', xval=50, yval=50)
s1 = pos(name='lower right corner', xval=350, yval=250)

def click(event):
    search = can.find_closest(event.x, event.y)
    dc.found = can.gettags(search)[0]

def callback(event):
    if dc.found == 'harrow':
        X = event.x

        Y = s0.yval
        s0.xval = X
        X = max(X,10)
        can.coords(dc.found, X-10,Y,X-5,Y-5,X-6,Y-2,X+6,Y-2,
            X+5,Y-5,X+10,Y,X+5,Y+5,X+6,Y+2,X-6,Y+2,X-5,Y+5)
        can.delete('square', 'varrow')
        can.create_rectangle((X,s0.yval), (s1.xval, s1.yval), width=2, tags='square')

        Y = s1.yval
        can.create_polygon([X,Y-10,X-5,Y-5,X-2,Y-5,X-2,Y+5,
            X-5,Y+5,X,Y+10,X+5,Y+5,X+2,Y+5,X+2,Y-5,X+5,Y-5],
            fill='lawn green',outline='lawn green', width=2,
            tags=('varrow'), activefill='red')

    elif dc.found == 'varrow':
        Y = event.y
        X = s0.xval
        s1.yval = Y
        Y = min(Y,dc.can_height-10)
        can.coords(dc.found, X,Y-10,X-5,Y-5,X-2,Y-5,X-2,Y+5,
            X-5,Y+5,X,Y+10,X+5,Y+5,X+2,Y+5,X+2,Y-5,X+5,Y-5)
        can.delete('square')
        can.create_rectangle((X, s0.yval), (s1.xval, Y), width=2, tags='square')

root = Tk()

can = Canvas(root, width=dc.can_width, height=dc.can_height)
can.bind('<B1-Motion>', callback)
can.bind('<ButtonPress-1>', click)

can.pack()


square = can.create_rectangle([s0.xval,s0.yval], [s1.xval,s1.yval], width=2,
    tags='square')

x = s0.xval
y = s0.yval
can.create_polygon([x-10,y,x-5,y-5,x-6,y-2,x+6,y-2,
            x+5,y-5,x+10,y,x+5,y+5,x+6,y+2,x-6,y+2,x-5,y+5],
            fill='',outline='lawn green',width=2, tags=('harrow'),
            activefill='red')

x = s0.xval
y = s1.yval
can.create_polygon([x,y-10,x-5,y-5,x-2,y-5,x-2,y+5,
            x-5,y+5,x,y+10,x+5,y+5,x+2,y+5,x+2,y-5,x+5,y-5],
            fill='lawn green',outline='lawn green', width=2,
            tags=('varrow'), activefill='red')

root.mainloop()

It can be seen that using coords involves quite complex code for a simple example, maybe by using Canvas move we can improve matters.
